SPD

SPD is a highly advanced solution for controlling the amount of light and visibility in a space. It uses tiny particles suspended in liquid to regulate the passage of light, offering a versatile and convenient way to control privacy and light.

SPD is ideal for use in homes, offices, and other commercial spaces, offering a range of options to meet your specific needs, whether you are looking for a simple light control solution or a more advanced smart glazing system.

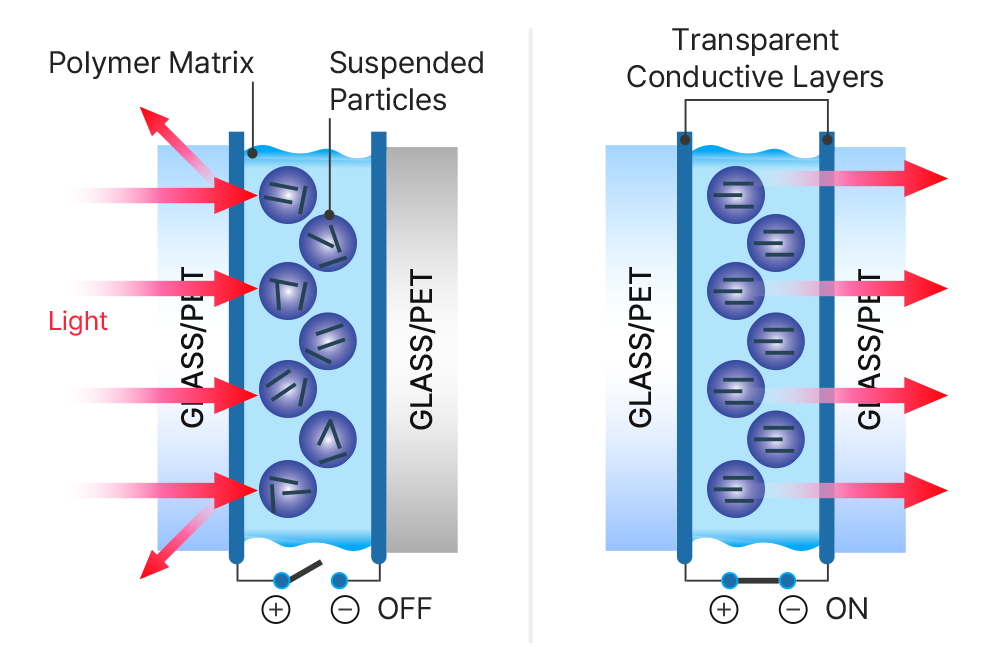

Principal and Structure
  • Off state
    In the unenergized state, suspended particles in polymer matrix droplets exist randomly,
    reflecting most wavelengths and transmitting only some wavelengths.

  • On state
    When electricity is applied, the suspended particles in the droplet are aligned in a line,
    and light is transmitted to become a transparent state.
SPD Film

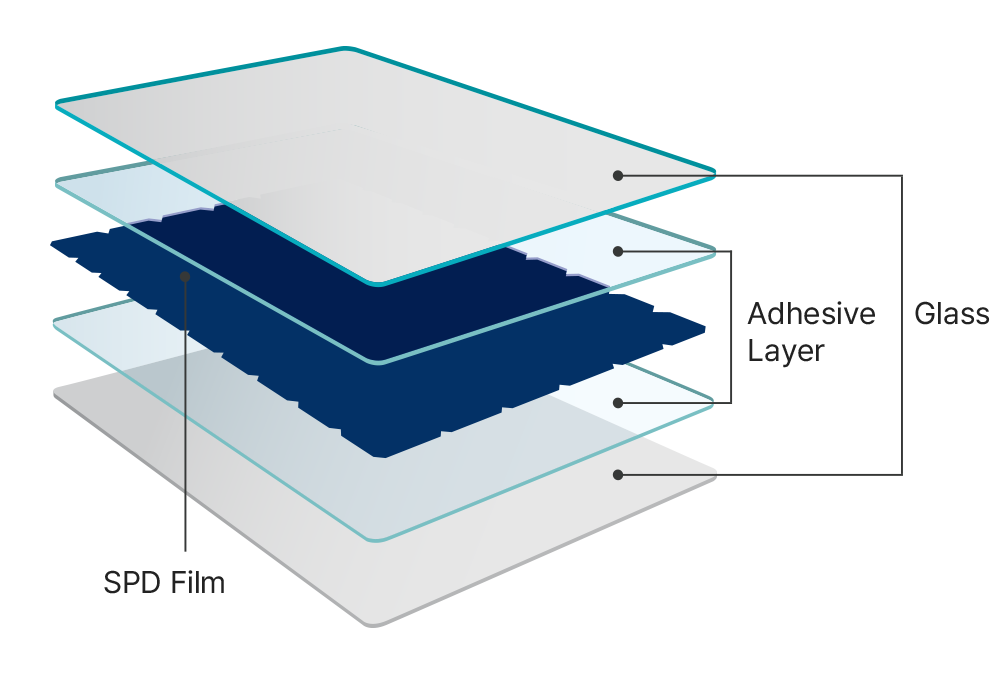

SPD Laminated Glass

Features

Dimming Control

Controls the amount of light transmitted from the sun to maintain a comfortable indoor state.

Clear View

SPD shows high light-blocking performance,
but can provide a clear view.

Save Energy

The SPD's visible light and infrared ray blocking performance is effective for cooling/heating and lighting energy savings.

Fast Response time

It shows visually satisfactory performance through fast response speed of 1 second level.

Easy to Control

An optimized controller is applied,
and smart control is also possible
through a mobile phone app.

DYNAMIC SMART FILM

SPD




DYNAMIC SMART FILM

SPD




DYNAMIC SMART FILM

SPD




DYNAMIC SMART FILM

SPD




SPD

SPD is a highly advanced solution for controlling the amount of light and visibility in a space. It uses tiny particles suspended in liquid to regulate the passage of light, offering a versatile and convenient way to control privacy and light.

SPD is ideal for use in homes, offices, and other commercial spaces, offering a range of options to meet your specific needs, whether you are looking for a simple light control solution or a more advanced smart glazing system.

Principal and Structure
  • Off state
    In the unenergized state, suspended particles in polymer matrix droplets exist randomly, reflecting most wavelengths and transmitting only some wavelengths.

  • On state
    When electricity is applied, the suspended particles in the droplet are aligned in a line, and light is transmitted to become a transparent state.
SPD Film

SPD Laminated Glass

Features
Dimming Control

Controls the amount of light transmitted from the sun to maintain a comfortable indoor state.

Clear View

SPD shows high light-blocking performance, but can provide a clear view.

Save Energy

The SPD's visible light and infrared ray blocking performance is effective for cooling/heating and lighting energy savings.

Fast Response time

It shows visually satisfactory performance through fast response speed of 1 second level.

Easy to Control

An optimized controller is applied, and smart control is also possible through a mobile phone app.

Specification
Specification
Product
Properties
NESP D
NESP L
Optical

Properties

Parallel Light
Transmittance
On (%)
35
55
Off (%)
1
10
Haze
≤ 5
≤ 5
UV Block (%)
99.9
99.9
Electrical
Properties
Operating Voltage (V)
0 ~ 110
0 ~ 110
Response Time (sec)
≤ 1
≤ 1
Power Consumption (W/m2)
1 ~ 3
1 ~ 3
Appearance
& Features
Operating Temperature (℃)
-20 ~ 90
-20 ~ 90
Roll Width & Length (mm)
≥ 1200
≥ 1200

Orion NES

Application section
Automotive
Glass

SPD can be applied to the glass and
sunroof of a car, and it can show more
efficient performance by saving cooling
energy. In addition, it can be applied as a
display in a car and become a factor in
the implementation of asmart car.













Automotive
Glass

SPD can be applied to the glass and
sunroof of a car, and it can show more
efficient performance by saving cooling
energy. In addition, it can be applied as a
display in a car and become a factor in
the implementation of asmart car.













Building
Window

SPD applied to buildings can maintain a
pleasant environment through energy
and External light control with free
manipulation. It can be installed in
various facilities such as hospitals,
libraries, and public institutions












Building
Window

SPD applied to buildings can maintain a
pleasant environment through energy
and External light control with free
manipulation. It can be installed in
various facilities such as hospitals,
libraries, and public institutions












Display
and Others

SPD can make the screen of the
transparent display more vivid by
blocking external light. It is also being
applied to digital fields such as AR and
VR glasses and goggles.












Display
and Others

SPD can make the screen of the
transparent display more vivid by
blocking external light. It is also being
applied to digital fields such as AR and
VR glasses and goggles.












Automotive
Glass

SPD can be applied to the glass and sunroof
of a car, and it can show more efficient
performance by saving cooling energy. In
addition, it can be applied as a display in a car
and become a factor in the implementation
of asmart car.










Automotive
Glass
Building
Window

SPD applied to buildings can maintain a
pleasant environment through energy and
External light control with free manipulation.
It can be installed in various facilities such as
hospitals, libraries, and public institutions












Building
Window
Display
and Others

SPD can make the screen of the transparent
display more vivid by blocking external light.
It is also being applied to digital fields such as
AR and VR glasses and goggles.












Display
and Others
