PDLC

PDLC is a modern solution for privacy and light control. It allows you to control the visibility and amount of light in a space by switching between clear and opaque states with an electric current.


Perfect for homes, offices, and other commercial spaces, PDLC offers a convenient and effective solution for privacy and light control. Whether you are looking for a simple switchable privacy solution or a more advanced smart glazing system, PDLC technology is a great choice.

PDLC

PDLC is a modern solution for privacy and light control. It allows you to control the visibility and amount of light in a space by switching between clear and opaque states with an electric current.

Perfect for homes, offices, and other commercial spaces, PDLC offers a convenient and effective solution for privacy and light control. Whether you are looking for a simple switchable privacy solution or a more advanced smart glazing system, PDLC technology is a great choice.







Principal and Structure
  • Off state
    In the off state, the liquid crystals in the polymer matrix are irregularly dispersed, scattering light.

  • On state
    When electricity is applied, the liquid crystal molecules in the liquid crystal droplets align in a row to pass light.
Off State
On State

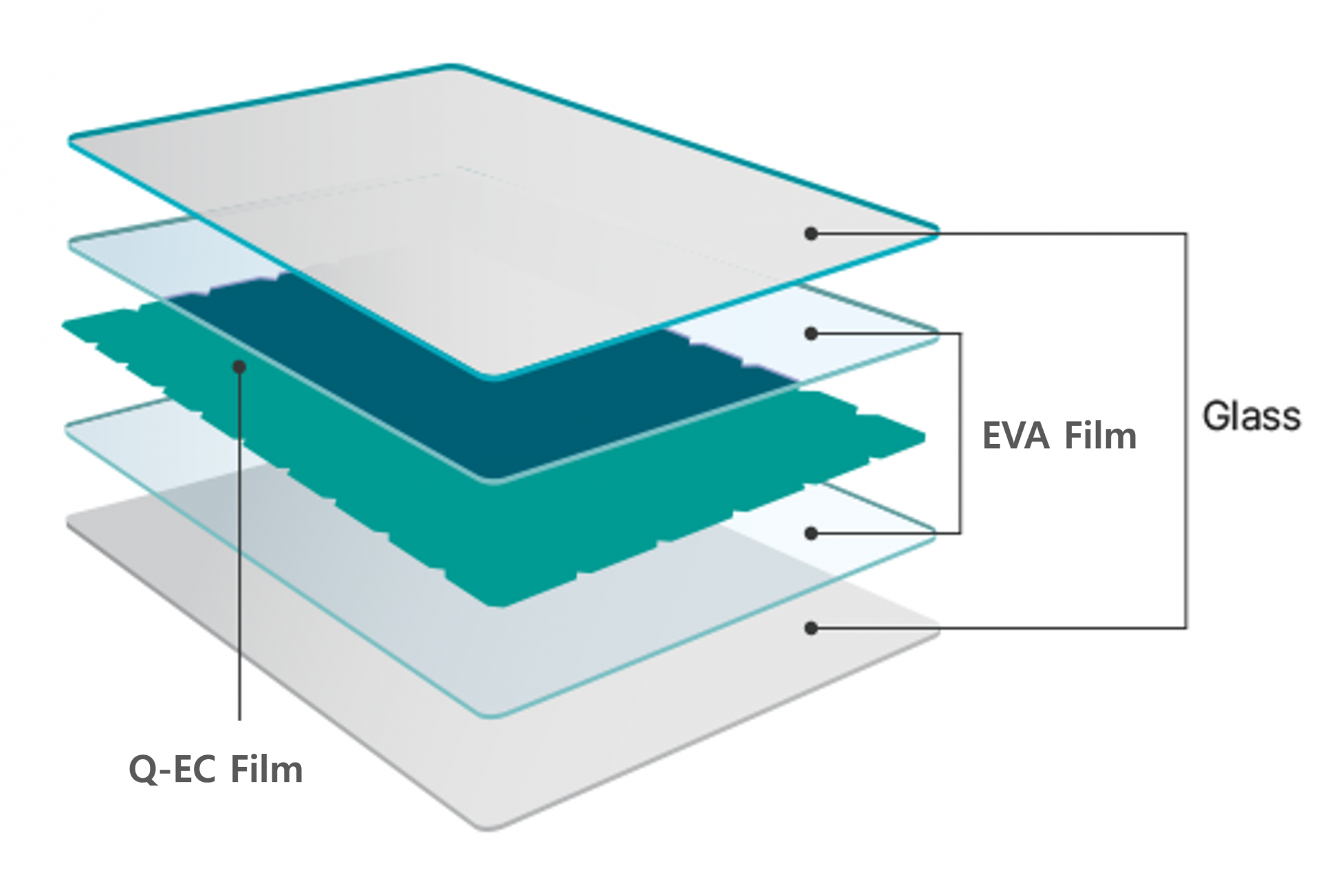

PDLC Laminated Glass

Features
Safe Privacy

The non-transparent status of PDLC provides safety against privacy exposure.

Control Temperature

PDLC with high infrared ray blocking rate reduces thermal energy from sunlight and helps to control comfortable indoor temperature.

Protect Health

Keep your body healthy by blocking UV and protecting yourself from the external environment.

Variety Designs

Products with a width of 1200 mm or more can be applied with various designs depending on the cutting method.

Easy to Control

An optimized controller is applied, and smart control is also possible through a mobile phone app.

Principal and Structure
  • Off state
     In the off state, the liquid crystals in the polymer matrix are irregularly dispersed, scattering light.

  • On state
    When electricity is applied, the liquid crystal molecules in the liquid crystal droplets align in a row to pass light.
Off State      On State

PDLC Laminated Glass

Features

Safe Privacy

The non-transparent status of PDLC provides safety against privacy exposure.

Control Temperature

PDLC with high infrared ray blocking rate reduces thermal energy from sunlight and helps to control comfortable indoor temperature.



Protect Health

Keep your body healthy by blocking UV and protecting yourself from the external environment.

Variety Designs

Products with a width of 1200 mm or more can be applied with various designs depending on the cutting method.


Easy to Control

An optimized controller is applied, and smart control is also possible through a mobile phone app.

Specification
Specification
Product
Properties
NEPD W
NEPD G
NEPN W
NEPN B
Optical

Properties

Parallel Light
Transmittance
(@550nm)
On (%)
84
45
6
7
Off (%)
1
1
78
30
Haze
On (%)
2
2
99
95
Off (%)
92
92
5
5
UV Block (%)
99
99
99
99
Electrical
Properties
Operating Voltage (V)
80 ~ 110
80 ~ 110
60 ~ 110
60 ~ 110
Response
Time
On ⇀ Off (ms)
10
10
10
10
Off ⇀ On (ms)
300
300
500
500
Power Consumption (W/m2)
5
5
2.5
2.5
Appearance
& Features
Operating Temperature (℃)
-50 ~ 100
-50 ~ 100
-20 ~ 60
-20 ~ 60
Roll Width & Length (mm)
≥ 1200
≥ 1200
≥ 1200
≥ 1200
Viewing Angle (°)
99
99
121
121

Orion NES

Application section
Building
Window

PDLC provides line-of-sight protection
and is therefore specialized in protecting
information and privacy. In addition,
when installed outside a building, it can
provide an automatic adjustment
function for the external environment
using an ambient light sensor and a
 temperature sensor.













Building
Window

PDLC provides line-of-sight protection
and is therefore specialized in protecting
information and privacy. In addition,
when installed outside a building, it can
provide an automatic adjustment
function for the external environment
using an ambient light sensor and a
 temperature sensor.













Transportation
Window

It also applies to cars, trains airplanes
and yachts. Controlling the transmission
of light in all types of vehicles creates an
optimal personal space environment.












Transportation
Window

It also applies to cars, trains airplanes
and yachts. Controlling the transmission
of light in all types of vehicles creates an
optimal personal space environment.












Indoor Glass

When dealing with important
meetings or confidential information,
you can enhance privacy by turning the
window to an opaque state.













Indoor Glass

When dealing with important
meetings or confidential information,
you can enhance privacy by turning the
window to an opaque state.













Building
Window

PDLC provides line-of-sight protection and is
therefore specialized in protecting information
and privacy. In addition, when installed outside
a building, it can provide an automatic
adjustment function for the external
environment using an ambient light sensor
and a temperature sensor.













Building
Window
Transportation
Window

It also applies to cars, trains airplanes and
yachts. Controlling the transmission of light
in all types of vehicles creates an optimal
personal space environment.












Transportation
Window
Indoor Glass

When dealing with important meetings or
confidential information, you can enhance
privacy by turning the window to an opaque
state.













Indoor Glass
